Double Flange Butterfly Valve PN10 / PN16

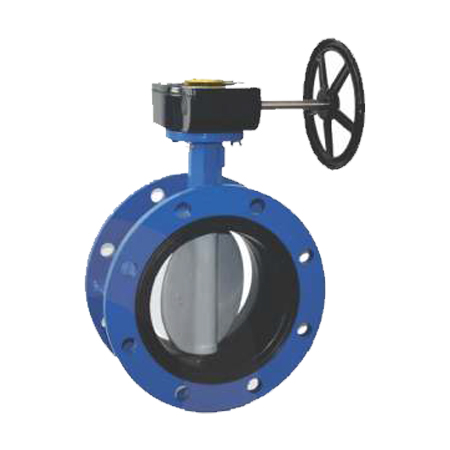

Double Flange Butterfly Valve
Design & Manufacturer Standards
| Valve Design / Shell Thickness | BS 5155 / API 609 / EN 596 / IS 13095 |
|---|---|
| Face to Face | BS 5155 / ISO 5752 / API 609 |
| Flanged End Connections | ASME B 16.5 / BS 10 TAB D & E IS 6392 NP 0.6 / 1.0 / 1.6 |
| Inspection & Testing | API 598 / BS 6755 Part - 1 / EN 12266-1 |
| Pressure Rating | Hydrostatic Shell Test | Hydrostatic Seat Test | ||
|---|---|---|---|---|
| Kg/cm² | PSI | Kg/cm² | PSI | |
| PN16 | 22 | 310 | 22 | 310 |
| PN10 | 15 | 210 | 15 | 210 |
| Part List | ||
|---|---|---|
| Sr. No. | Item Description | Material |
| 1 | Body | CAST IRON / CAST STEEL / S.S. 304 / S.S. 316 |
| 2 | Disc | |
| 3 | Spindle | S.S. 410 / S.S. 304 / S.S. 316 |
| 4 | Body Lining | NITRILE / EPDM / Silicon / Viton / Hypalon |
| 5 | 'O' Ring | NITRILE / EPDM |
| 6 | Hex Bolt | S.S. 304 / 316 |
| 7 | Gear Box | Cast Iron |
| 8 | Hand Wheel | M.S. Fabricated |

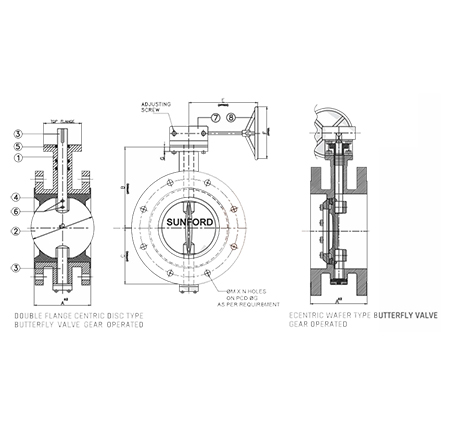

| ANSI - 150 Dimensions | ||||||||
|---|---|---|---|---|---|---|---|---|
| Size | A | ∅B | C | ∅D | E | F | G | Top Flange (ISO 5211) |
| 50 | 108 | 125 | 85 | 50 | 65 | 180 | 15 | F05 |
| 65 | 112 | 125 | 95 | 63 | 65 | 180 | 15 | F05 |
| 80 | 114 | 155 | 102 | 76 | 65 | 215 | 15 | F05 |
| 100 | 127 | 160 | 112 | 100 | 65 | 215 | 15 | F05 |
| 125 | 140 | 180 | 134 | 125 | 65 | 265 | 15 | F05 |
| 150 | 140 | 210 | 147 | 150 | 65 | 265 | 15 | F05 |
| 200 | 152 | 250 | 175 | 200 | 75 | 35 | 15 | F07 |
| Size | A | ∅B | C | ∅D | E | F | G | Top Flange (ISO 5211) |
|---|---|---|---|---|---|---|---|---|
| 200 | 152 | 250 | 175 | 200 | 285 | 300 | 15 | F10 |
| 250 | 165 | 285 | 208 | 249 | 285 | 350 | 18 | F10 |
| 300 | 178 | 310 | 227 | 297 | 285 | 350 | 18 | F10 |
| 350 | 190 | 340 | 275 | 348 | 300 | 350 | 22 | F12 |
| 400 | 216 | 376 | 308 | 394 | 305 | 500 | 22 | F14 |
| 450 | 222 | 390 | 373 | 433 | 305 | 500 | 24 | F14 |
| 500 | 229 | 425 | 408 | 470 | 370 | 50 | 26 | F16 |
| 600 | 267 | 500 | 464 | 570 | 350 | 600 | 26 | F16 |
