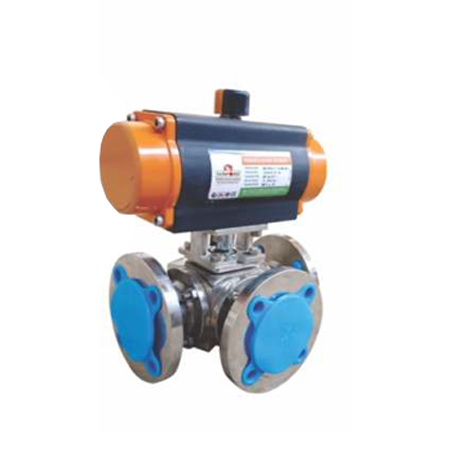

3 Way Ball Valves
3 Way Ball Valves

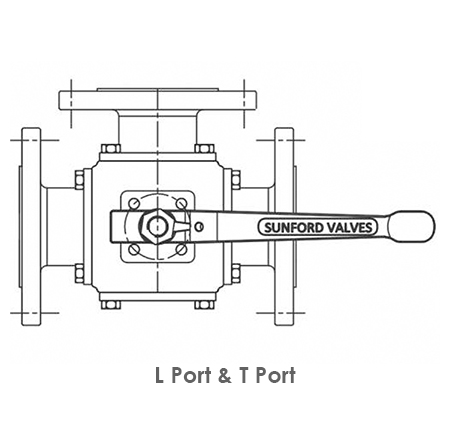

- Thre way ball valve is available in either "L" Port or "T" Port.
- "L" Port Three Way Ball Valve is used for Piplines to switch the flow direction of two flow lines perpendicular with each other.
- "T" Port Three Way Ball Valve is used for diverting, mixing or switching the flow direction. Ball passage is able to switch on three flow lines or switch on two of the three flow lines.
Features
- Four seat for equal seat loading.
- Multiple Gland Packing, Seals & Spring Washer for zero leakage from gland.
| Hydraulic Test Pressure 150# | ||
|---|---|---|
| 1 | Body Test | 32 Kg/cm² |
| 2 | Seat Test | 23 Kg/cm² |
| 3 | Air Test | 07 Kg/cm² |
| Mouting | ||
|---|---|---|
| Interface | ISO 5211 | |
| Body MOC | CS, CF8, CF8M | |
| Trim MOC | CF8, CF8M | |
| Seat MOC | PTFE, GFT, PEK (Special On Request) | |
| Size | 1" (25mm) to 8" (200mm) | |
