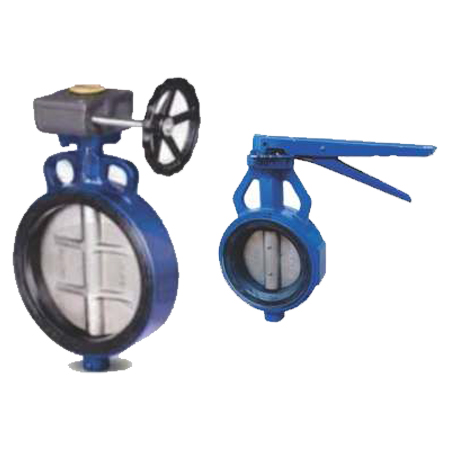

Centric Disc Butterfly Valve
Centric Disc Butterfly Valve
Design & Manufacturer Standards
| Valve Design / Shell Thickness | BS 5155 / API 609 / EN 596 / IS 13095 |
|---|---|
| Face to Face | BS 5155 / ISO 5752 / API 609 |
| Flanged End Connections | ASME B 16.5 / BS 10 TAB D & E IS 6392 NP 0.6 / 1.0 / 1.6 |
| Inspection & Testing | API 598 / BS 6755 Part - 1 / EN 12266-1 |
| Pressure Rating | Hydrostatic Shell Test | Hydrostatic Seat Test | ||
|---|---|---|---|---|
| Kg/cm² | PSI | Kg/cm² | PSI | |
| PN16 | 22 | 310 | 22 | 310 |
| PN10 | 15 | 210 | 15 | 210 |
| Seat Temperature | ||
|---|---|---|
| Seat Type | Tenperature Range | |
| Min | Max | |
| NITRILE | -13°F (-25°C) | 212°F (100°C) |
| EPDM | -13°F (-25°C) | 250°F (120°C) |
| Silcion | -58°F (-50°C) | 356°F (180°C) |
| Viton | -23°F (-5°C) | 392°F (200°C) |
| Hypalon | -4°F (-20°C) | 250°F (120°C) |
| Part List | ||
|---|---|---|
| Sr. No. | Item Description | Material |
| 1 | Body | CAST IRON / CAST Steel / S.S. 304/316 |
| 2 | Disc | CAST IRON / CAST Steel / S.S. 304/316 |
| 3 | Spindle | S.S. 410 / 304 / 316 |
| 4 | Body Lining | NITRILE / EPDM / Silicon / Hypalon |
| 5 | 'O' Ring | NITRILE / EPDM / |
| 6 | Pin | S.S. 304 / 316 |
| 7 | Gear Box | Cast Iron |
| 8 | Hand Wheel | M.S. Fabricated |

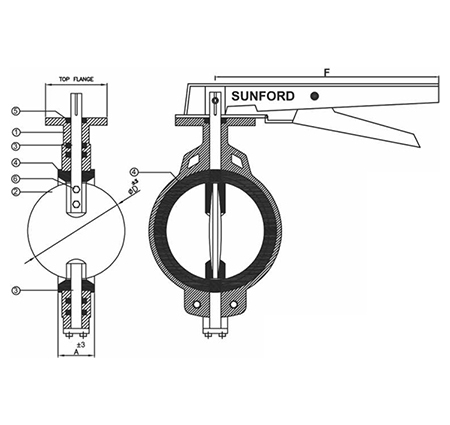

| Handled Operated | |||
|---|---|---|---|
| Dimensions | |||
| Valve Size | A | ∅C | F |
| 40 | 36 | 37 | 180 |
| 50 | 43 | 50 | 180 |
| 65 | 46 | 63 | 180 |
| 80 | 46 | 76 | 215 |
| 100 | 52 | 100 | 215 |
| 125 | 56 | 125 | 215 |
| 150 | 56 | 150 | 265 |
| 200 | 60 | 200 | 325 |

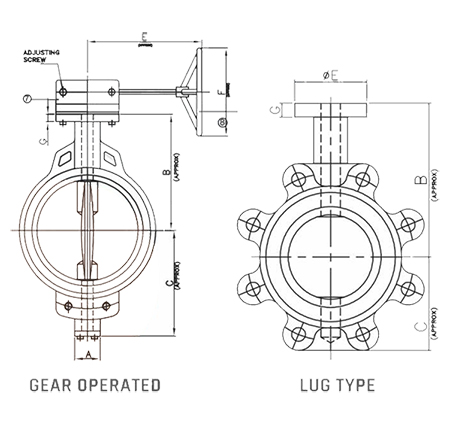

| Gear Operated | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Size | A | B | C | D | E | F | G | Top Flange Mounting (I.S.0 5211) | |
| MM | Inch | ||||||||
| 200 | 8" | 60 | 230 | 156 | 200 | 285 | 300 | 15 | F10 |
| 250 | 10" | 68 | 266 | 196 | 250 | 285 | 350 | 18 | F10 |
| 300 | 12" | 78 | 300 | 230 | 298 | 285 | 350 | 18 | F10 |
| 350 | 14" | 92 | 320 | 272 | 348 | 300 | 350 | 22 | F12 |
| 400 | 16" | 102 | 385 | 302 | 394 | 305 | 500 | 22 | F14 |
| 450 | 18" | 114 | 405 | 325 | 433 | 305 | 500 | 24 | F14 |
