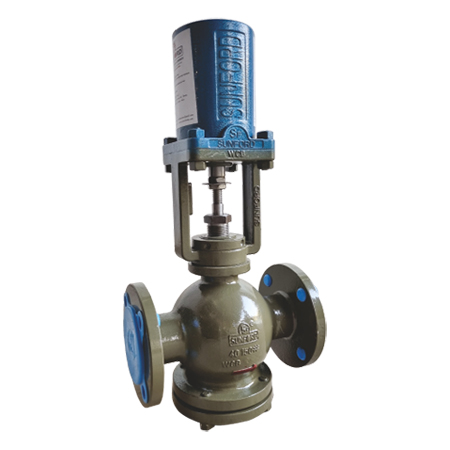

Control Valve 2 Way Class 150/300
Control Valve 2 Way Class 150/300 (Soft Seated - On/Off)
Design & Manufacturer Standards
| Face to Face | As per below table |
|---|---|
| Flanged End Connections | ASME B 16.5 |
| Pressure Temp. Ratings | ASME B 16.34 |
| Butt Weld Dimension | API B 16.25 |
| Inspection & Testing | API 598 / BS 5146 |
Special Features of Sunford Valves
- High rated valve capacity and range ability.
- Heavy-Duty ground and polished stems.
- Wide range of interchangeable trim size.
- Below seals available for positive stem sealing.
- Comprehensively designed and tested to ensure its optimum performance for the tough process parameters specified.
- Motorized Actuator Available.

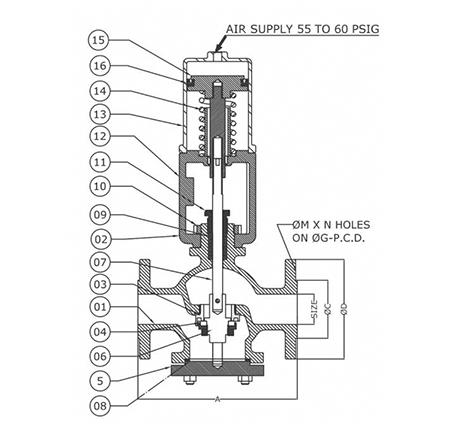

| Part List | ||
|---|---|---|
| Sr. No. | Item Description | Material |
| 1 | Body | ASTM A216 GR. WCB / CF8 / CF8M |
| 2 | Bonnet | ASTM A216 GR. WCB / CF8 / CF8M |
| 3 | Seat | AISI 304 / 316 |
| 4 | Plug Teflon | Virgin PTFE / GFT / CFT |
| 5 | Tail Piece | ASTM A216 GR. WCB / CF8 / CF8M |
| 6 | Plug | AISI 304 / 316 |
| 7 | Stem | AISI 304 / 316 |
| 8 | Gasket | SS 304 SPW + Graphite |
| 9 | Gland | Grafoil |
| 10 | Lock Nut | MS |
| 11 | Gland Nut | AISI 304 / 316 / 410 |
| 12 | Actuator Stand | SG Iron / ASTM A216 GR. WCB |
| 13 | Cylinder | Aluminum |
| 14 | Spring | Stainless Steel |
| 15 | Piston | SG Iron |
| 16 | "V" Ring | NITRILE RUBBER / VITON RUBBER |
| Dimensions Class 150 | |||||||
|---|---|---|---|---|---|---|---|
| Size | A | B | ∅C | ∅D | ∅M | N | ∅G |
| 25 | 186 | 11.1 | 51 | 108 | 16 | 4 | 79 |
| 40 | 200 | 14.3 | 73.0 | 125 | 16 | 4 | 98.5 |
| 50 | 254 | 16 | 92 | 150 | 19 | 4 | 121 |
| 65 | 279 | 17.5 | 105 | 180 | 19 | 4 | 140 |
| 80 | 300 | 19.1 | 127 | 190 | 19 | 4 | 152 |
